The Language of Industry

What would happen if you were to change the focus of an entire country's art education system from imitating nature and the human body to mastering the art of technical drawing and creating diagrams?

By the time the French artist Marcel Duchamp was born in 1887, the French national education system had undergone a systematic overhaul and just such changes were already in place in the art departments of each state-funded public school. Students of art were no longer expected to study and mimic classical sculpture, the old masters, or the art of the renaissance. Instead, the aim of the new curriculum was fluency in a measured, mechanical drawing style that was refined, skeletal and precise. (1)

Figure 2: Image of a coffee mill in perspective and projected forms

from a French school text book of artistic training. (Paris: Laurens 1887, p 27.)

Referred to as the 'language of industry', this was a wholesale promotion of a new national, visual language of science, technology and culture in the age of mechanical production. This educational shift was a direct response to the Industrial Revolution, designed to equip a new generation with the skills for technical innovation and solidify France's position as a modern industrial power. In other words, second only to the epic encyclopedic projects of the 1700s, this was the new dawn of the diagram at the heart of French Culture.

In her excellent essay titled 'The language of Industry', Art Historian and Duchamp Scholar Molly Nesbit describes how "by and large this was a language meant for work, not for leisure, and certainly not for raptures or poetic, high cultural sighs. This language was pre-aesthetic, a public culture based upon mechanical drawings, sans colour, sans nature, sans body, sans the classics, some would have said sans everything." (2)

Non-Retinal Art

Within the classrooms, drawing courses were divided into depicting objects in perspective (objects reproduced the way they appear to the eye) and in projection (objects depicted as ideal forms, independent of a human observer and the optics of our two human eyes). Because of this distinction, French art students were taught to make a fundamental distinction between apparent and true representation, just as Duchamp himself would later make a similar distinction between what he called retinal and non-retinal art.

For Duchamp, 'retinal' art was concerned with pleasing the eye—the painterly traditions of his predecessors—while 'non-retinal' art was intended to serve the mind, prioritizing the concept or idea behind the work.

Figure 3: Marcel Duchamp, Moulin à café (Coffee Mill),

Oil paint and graphite on board, 33 x 12.7 cm

Duchamp's 1911 painting 'Moulin à café' already shows signs of the lasting influence his training in diagrammatic image making would have upon his life's work as an artist. It also contains traces of cubist techniques such as fractured lines and multiple projected viewpoints. Duchamp described how 'Moulin à café' was "based on the idea of dismantling the grinder", and gave the painting to his brother, the artist, Raymond Duchamp-Villon as a wedding gift. (3)

Even in this early work, Duchamp was already making sexual puns and innuendos to counterbalance the clinical, sterile and idealised qualities of the pure diagrammatic form. It was a way of subverting the purely functional, industrial language he had been taught to master, reintroducing the messy, unpredictable, and humorous elements of human desire back into the cold logic of the machine.

The symbols within 'Moulin à café' eventually evolved into the element known as the 'Chocolate grinder' in Duchamp's master-work 'The bride stripped bare by her bachelors even', otherwise known as 'the Large Glass'. In a series of notes written to accompany 'The Large Glass', Duchamp explained that, “The bachelor grinds his chocolate himself”, suggesting that the Coffee Mill is a metaphor for masturbation. (4) Duchamp later commented that: “Always there has been a necessity for circles in my life, for, how do you say, rotation. It is a kind of onanism.” (5)

Marcel Duchamp went on to develop his artistic use of diagrams and diagramming in a number of important ways, from the one-dimensional plumb lines that he dropped to make '3 standard stoppages' (a work which questions the one-dimensional meter as a standard unit of length), to his intricate two-dimensional sketches for 'The Large Glass' which suggest archetypal lines and platonic skeletal forms in higher dimensions.

Figure 5: Marcel Duchamp, Sketch for the Large Glass, 1913,

Pencil on tracing cloth, 30.8 x 25.4cm.

Figure 5: Marcel Duchamp, Sketch for the Large Glass, 1913,

Pencil on tracing cloth, 30.8 x 25.4cm.

Duchamp's various projects embodied a more general shift in science and culture, from drawing as a representation of the natural world, to drawing as a means of depicting the technical nature of the structural and functional systems which underlie reality, as described by science and mathematics, but always by means of the diagram.

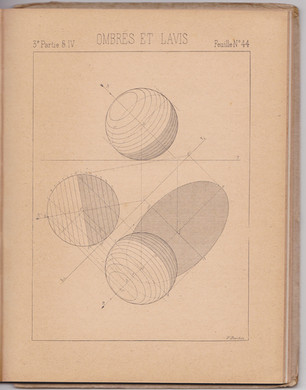

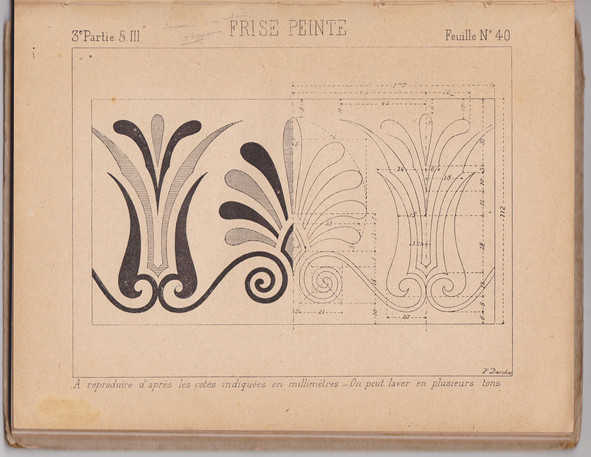

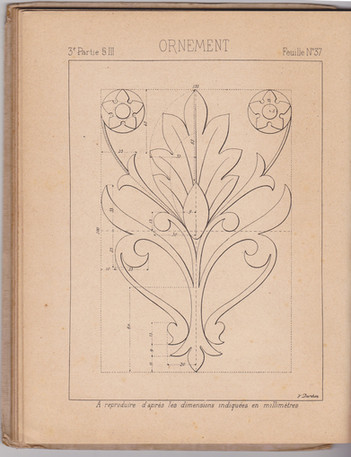

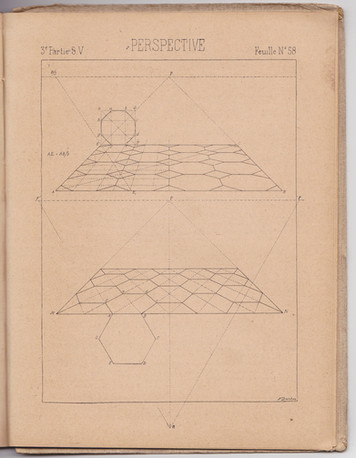

The following diagrams were scanned from the third book in the series "Nouveau Cours de Dessin géométrique", compiled by Professor V. Darchez of the state-funded secondary school in Lyon19. The director of the Beaux-Arts School in Paris at the time, the sculptor and critic Eugène Guillaume, elaborated upon the new program of diagrammatic training:

"Drawing is by its very nature exact, scientific, authoritative. It images with undeniable precision (to which one must submit) things such as they are or as they appear. Not one of its configurations could not be analyzed, verified, transmitted, understood, realized. In its geometrical sense, as in perspective, drawing is written and is read: it has the character of a universal language." (6)
